Infrastructure Zero Trust avec HashiCorp Vault, Boundary et Terraform

#!/bin/bash
# Installation des outils HashiCorp sur Ubuntu/Debian

echo "=== Installation des prérequis ==="
sudo apt update && sudo apt install -y wget curl gpg lsb-release unzip git jq

echo "=== Ajout du repository HashiCorp ==="
wget -O- https://apt.releases.hashicorp.com/gpg | \
  sudo gpg --dearmor -o /usr/share/keyrings/hashicorp-archive-keyring.gpg

echo "deb [signed-by=/usr/share/keyrings/hashicorp-archive-keyring.gpg] \
  https://apt.releases.hashicorp.com $(lsb_release -cs) main" | \
  sudo tee /etc/apt/sources.list.d/hashicorp.list

echo "=== Installation Terraform, Vault, Boundary ==="
sudo apt update
sudo apt install -y terraform vault boundary

echo "=== Vérification des versions ==="
terraform version
vault version
boundary version

echo "=== Création de la structure projet ==="
mkdir -p ~/vault-boundary-tutorial/{terraform,configs,scripts,outputs,logs}
cd ~/vault-boundary-tutorial

echo "Installation terminée avec succès"

# Vérifier que tous les outils sont fonctionnels
terraform version     # >= v1.6.0
vault version         # >= v1.15.0
boundary version      # >= v0.14.0

#!/bin/bash
# Script : 01-deploy-vault.sh

echo "=== Démarrage de HashiCorp Vault ==="

# Démarrer Vault en mode dev avec token prévisible
nohup vault server -dev \
  -dev-root-token-id="root" \
  -dev-listen-address="0.0.0.0:8200" \
  -log-level="INFO" \
  > ~/vault-boundary-tutorial/logs/vault.log 2>&1 &

# Sauvegarder le PID du processus
echo $! > ~/vault-boundary-tutorial/vault.pid

# Attendre le démarrage complet
sleep 5

# Configuration des variables d'environnement
export VAULT_ADDR='http://127.0.0.1:8200'
export VAULT_TOKEN='root'

# Sauvegarder la configuration pour réutilisation
cat > ~/vault-boundary-tutorial/configs/vault-env.sh << 'EOF'
export VAULT_ADDR='http://127.0.0.1:8200'
export VAULT_TOKEN='root'
EOF

# Vérification du statut de Vault
vault status

echo "Vault démarré et accessible sur http://127.0.0.1:8200"
echo "Token d'accès : root"

#!/bin/bash

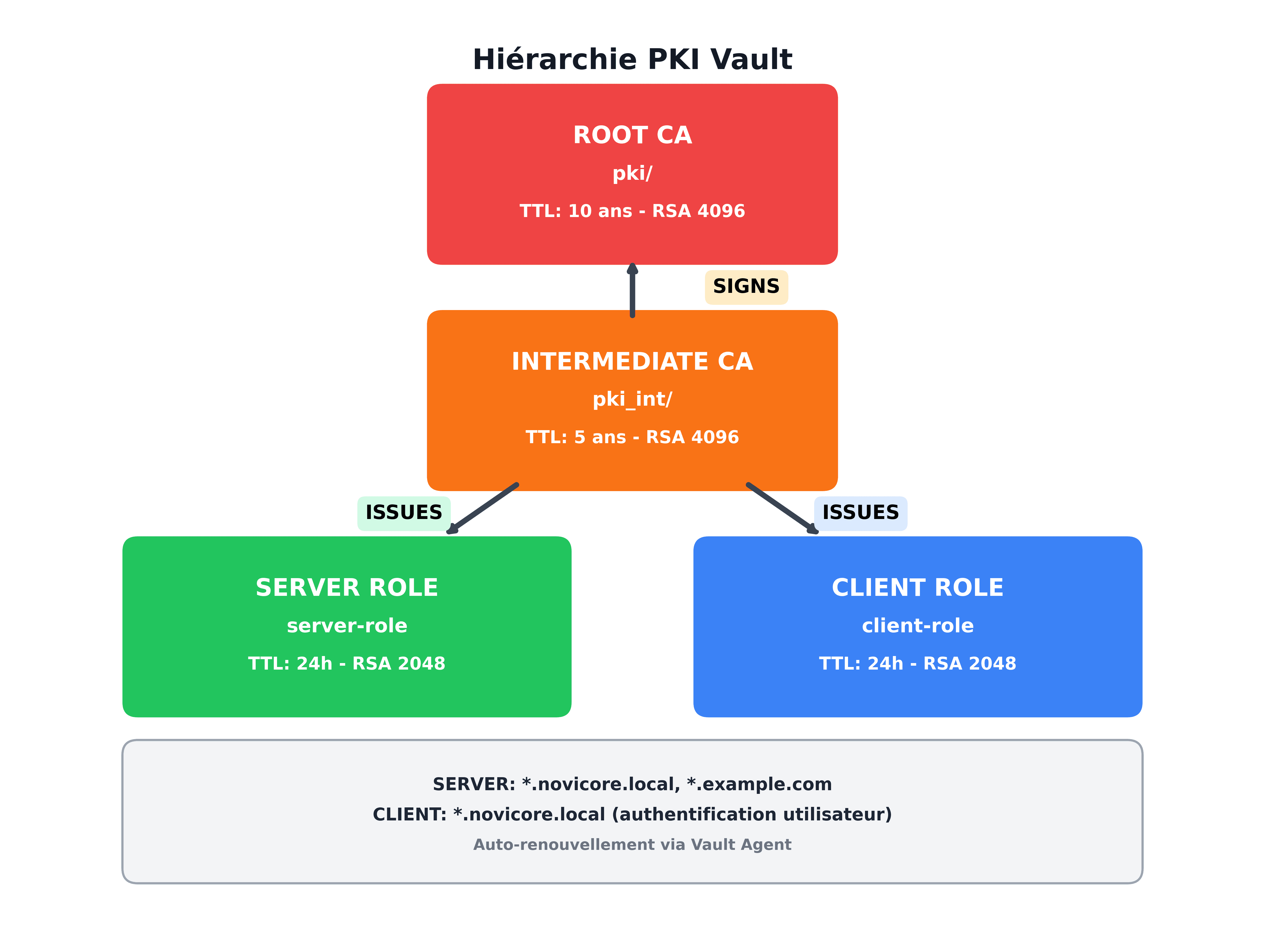

# Configuration de la Root CA et PKI principal

source ~/vault-boundary-tutorial/configs/vault-env.sh

echo "=== Configuration du moteur PKI principal ==="

# Activer le moteur PKI
vault secrets enable pki

# Configurer le TTL maximal (10 ans)
vault secrets tune -max-lease-ttl=87600h pki

# Générer la Root CA auto-signée
vault write -field=certificate pki/root/generate/internal \
    common_name="Novicore Root CA" \
    issuer_name="root-2025" \
    ttl=87600h \
    key_type="rsa" \
    key_bits=4096 \
    country="FR" \
    province="Île-de-France" \
    locality="Paris" \
    organization="Novicore" \
    ou="Security Department" \
    > ~/vault-boundary-tutorial/outputs/root_ca.crt

# Configurer les URLs de distribution
vault write pki/config/urls \
    issuing_certificates="$VAULT_ADDR/v1/pki/ca" \
    crl_distribution_points="$VAULT_ADDR/v1/pki/crl"

echo "Root CA générée et configurée"
echo "Certificat sauvé : ~/vault-boundary-tutorial/outputs/root_ca.crt"

#!/bin/bash
# Configuration de l'Intermediate CA

source ~/vault-boundary-tutorial/configs/vault-env.sh

echo "=== Configuration du PKI intermédiaire ==="

# Monter un second moteur PKI pour l'autorité intermédiaire
vault secrets enable -path=pki_int pki

# Configurer le TTL maximal (5 ans)
vault secrets tune -max-lease-ttl=43800h pki_int

# Générer la demande de certificat (CSR) pour l'intermédiaire
vault write -format=json pki_int/intermediate/generate/internal \
    common_name="Novicore Intermediate CA" \
    issuer_name="novicore-intermediate" \
    key_type="rsa" \
    key_bits=4096 \
    country="FR" \
    province="Île-de-France" \
    locality="Paris" \
    organization="Novicore" \
    ou="PKI Operations" \
    | jq -r '.data.csr' \
    > ~/vault-boundary-tutorial/outputs/pki_intermediate.csr

# Faire signer la CSR par la Root CA
vault write -format=json pki/root/sign-intermediate \
    issuer_ref="root-2025" \
    csr=@~/vault-boundary-tutorial/outputs/pki_intermediate.csr \
    format=pem_bundle \
    ttl="43800h" \
    | jq -r '.data.certificate' \
    > ~/vault-boundary-tutorial/outputs/intermediate.cert.pem

# Importer le certificat signé dans le PKI intermédiaire
vault write pki_int/intermediate/set-signed \
    certificate=@~/vault-boundary-tutorial/outputs/intermediate.cert.pem

# Configurer les URLs pour l'autorité intermédiaire
vault write pki_int/config/urls \
    issuing_certificates="$VAULT_ADDR/v1/pki_int/ca" \
    crl_distribution_points="$VAULT_ADDR/v1/pki_int/crl"

echo "Intermediate CA configurée et opérationnelle"

#!/bin/bash
# Création des rôles pour l'émission de certificats

source ~/vault-boundary-tutorial/configs/vault-env.sh

echo "=== Création des rôles de certificats ==="

# Rôle pour les certificats serveur
vault write pki_int/roles/server-role \
    allowed_domains="novicore.local,example.com,localhost" \
    allow_subdomains=true \
    allow_localhost=true \
    allow_ip_sans=true \
    max_ttl="8760h" \
    key_type="rsa" \
    key_bits=2048 \
    server_flag=true \
    client_flag=false \
    enforce_hostnames=true \
    key_usage="DigitalSignature,KeyEncipherment" \
    ext_key_usage="ServerAuth"

# Rôle pour les certificats client (authentification utilisateur)
vault write pki_int/roles/client-role \
    allowed_domains="novicore.local" \
    allow_subdomains=true \
    max_ttl="720h" \
    key_type="rsa" \
    key_bits=2048 \
    server_flag=false \
    client_flag=true \
    key_usage="DigitalSignature" \
    ext_key_usage="ClientAuth"

# Rôle spécialisé pour SSH (authentification par certificat)
vault write pki_int/roles/ssh-role \
    allowed_domains="novicore.local,internal.local" \
    allow_subdomains=true \
    max_ttl="24h" \
    key_type="rsa" \
    key_bits=2048 \
    server_flag=false \
    client_flag=true

echo "Rôles de certificats créés avec succès"

# Test d'émission d'un certificat serveur
echo "=== Test d'émission de certificat ==="
vault write -format=json pki_int/issue/server-role \
    common_name="test.novicore.local" \
    alt_names="api.test.novicore.local,web.test.novicore.local" \
    ip_sans="127.0.0.1" \
    ttl="24h" \
    > ~/vault-boundary-tutorial/outputs/test_server_cert.json

# Extraire et vérifier le certificat
jq -r '.data.certificate' ~/vault-boundary-tutorial/outputs/test_server_cert.json \
    > ~/vault-boundary-tutorial/outputs/test_server.crt

jq -r '.data.private_key' ~/vault-boundary-tutorial/outputs/test_server_cert.json \
    > ~/vault-boundary-tutorial/outputs/test_server.key

# Vérification du certificat généré
echo "Détails du certificat de test :"
openssl x509 -in ~/vault-boundary-tutorial/outputs/test_server.crt \
    -text -noout | head -30

echo "PKI complètement opérationnel"

#!/bin/bash
# Script : 02-deploy-boundary.sh

echo "=== Déploiement de HashiCorp Boundary ==="

# Créer la configuration Boundary
mkdir -p ~/vault-boundary-tutorial/configs/boundary

# Configuration du controller Boundary
cat > ~/vault-boundary-tutorial/configs/boundary/controller.hcl << 'EOF'
# Configuration Boundary Controller (mode dev)
disable_mlock = true

controller {
  name = "boundary-controller"
  description = "Boundary controller for tutorial"

  database {
    url = "env://BOUNDARY_PG_URL"
  }
}

listener "tcp" {
  address = "0.0.0.0:9200"
  purpose = "api"
  tls_disable = true
}

listener "tcp" {
  address = "0.0.0.0:9201"
  purpose = "cluster"
  tls_disable = true
}

listener "tcp" {
  address = "0.0.0.0:9202"
  purpose = "proxy"
  tls_disable = true
}

kms "aead" {
  purpose = "root"
  aead_type = "aes-gcm"
  key = "sP1fnF5Xz85RrXyELHFeZg9Ad2qt4Z4bgNHVGtD6ung="
  key_id = "global_root"
}

kms "aead" {
  purpose = "worker-auth"
  aead_type = "aes-gcm"
  key = "8fZBjCUfN0TzjEGLQldGY4+iE9AkOvCfjh7+p0GtRBQ="
  key_id = "global_worker-auth"
}

kms "aead" {
  purpose = "recovery"
  aead_type = "aes-gcm"
  key = "8fZBjCUfN0TzjEGLQldGY4+iE9AkOvCfjh7+p0GtRBQ="
  key_id = "global_recovery"
}
EOF

# Démarrer PostgreSQL pour Boundary (via Docker)
echo "=== Démarrage de PostgreSQL pour Boundary ==="
docker run -d --name boundary-postgres \
  -e POSTGRES_DB=boundary \
  -e POSTGRES_USER=boundary \
  -e POSTGRES_PASSWORD=boundary_pass \
  -p 5432:5432 \
  postgres:15

sleep 10

# Configuration de l'URL de base de données
export BOUNDARY_PG_URL="postgresql://boundary:boundary_pass@localhost:5432/boundary?sslmode=disable"

# Initialiser la base de données Boundary
boundary database init -config ~/vault-boundary-tutorial/configs/boundary/controller.hcl

# Démarrer le controller Boundary
nohup boundary server -config ~/vault-boundary-tutorial/configs/boundary/controller.hcl \
  > ~/vault-boundary-tutorial/logs/boundary-controller.log 2>&1 &

echo $! > ~/vault-boundary-tutorial/boundary-controller.pid

sleep 5

echo "Boundary Controller démarré sur port 9200"

#!/bin/bash
# Création de la structure Terraform pour Boundary

cd ~/vault-boundary-tutorial/terraform

# Provider Boundary
cat > boundary.tf << 'EOF'
terraform {
  required_providers {
    boundary = {
      source  = "hashicorp/boundary"
      version = "~> 1.1"
    }
  }
}

provider "boundary" {
  addr                   = "http://127.0.0.1:9200"
  auth_method_id         = var.auth_method_id
  auth_method_login_name = var.auth_login_name
  auth_method_password   = var.auth_password
}

variable "auth_method_id" {
  description = "Auth method ID from Boundary initialization"
  type        = string
}

variable "auth_login_name" {
  description = "Initial admin login name"
  type        = string
}

variable "auth_password" {
  description = "Initial admin password"
  type        = string
  sensitive   = true
}

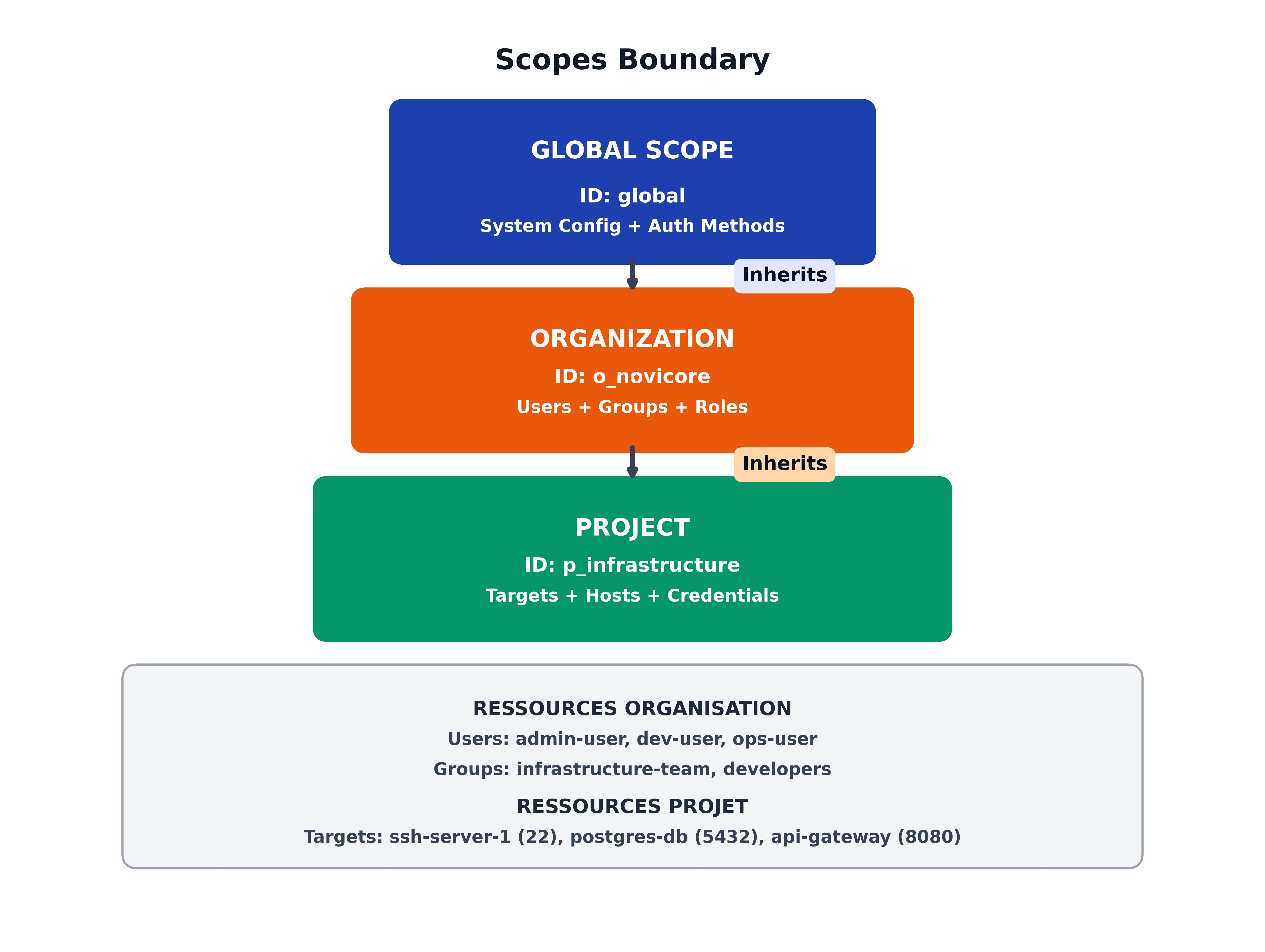

# Récupérer le scope global
data "boundary_scope" "global" {
  scope_id = "global"
}

# Créer le scope organisation
resource "boundary_scope" "org" {
  scope_id                 = data.boundary_scope.global.id
  name                     = "novicore-org"
  description              = "Organisation Novicore"
  auto_create_admin_role   = true
  auto_create_default_role = true
}

# Créer le scope projet
resource "boundary_scope" "project" {
  scope_id                 = boundary_scope.org.id
  name                     = "infrastructure-project"
  description              = "Projet Infrastructure"
  auto_create_admin_role   = true
}

# Créer des utilisateurs
resource "boundary_user" "infrastructure_admin" {
  name        = "infra-admin"
  description = "Administrateur infrastructure"
  scope_id    = boundary_scope.org.id
}

resource "boundary_user" "developer" {
  name        = "developer"
  description = "Développeur"
  scope_id    = boundary_scope.org.id
}

# Créer un groupe
resource "boundary_group" "infrastructure_team" {
  name        = "infrastructure-team"
  description = "Équipe Infrastructure"
  scope_id    = boundary_scope.org.id
  member_ids  = [
    boundary_user.infrastructure_admin.id,
    boundary_user.developer.id
  ]
}

# Host catalog statique
resource "boundary_host_catalog_static" "servers" {
  name        = "servers-catalog"
  description = "Catalogue des serveurs"
  scope_id    = boundary_scope.project.id
}

# Hosts (serveurs cibles)
resource "boundary_host_static" "ssh_server" {
  name            = "ssh-server-1"
  description     = "Serveur SSH test"
  address         = "127.0.0.1"
  host_catalog_id = boundary_host_catalog_static.servers.id
}

# Host set
resource "boundary_host_set_static" "ssh_servers" {
  name            = "ssh-servers-set"
  description     = "Ensemble serveurs SSH"
  host_catalog_id = boundary_host_catalog_static.servers.id
  host_ids = [
    boundary_host_static.ssh_server.id
  ]
}

# Target SSH
resource "boundary_target" "ssh_target" {
  name         = "ssh-server-target"
  description  = "Accès SSH sécurisé"
  type         = "tcp"
  default_port = 22
  scope_id     = boundary_scope.project.id

  host_source_ids = [
    boundary_host_set_static.ssh_servers.id
  ]
}

# Rôle d'accès aux targets
resource "boundary_role" "infrastructure_access" {
  name        = "infrastructure-access"
  description = "Accès aux ressources d'infrastructure"
  scope_id    = boundary_scope.project.id

  grant_strings = [
    "id=${boundary_target.ssh_target.id};actions=authorize-session",
    "type=session;actions=read,list,cancel:self"
  ]

  principal_ids = [boundary_group.infrastructure_team.id]
}

# Outputs
output "org_scope_id" {
  value = boundary_scope.org.id
}

output "project_scope_id" {
  value = boundary_scope.project.id
}

output "ssh_target_id" {
  value = boundary_target.ssh_target.id
}
EOF

echo "Configuration Terraform Boundary créée"

# terraform/vault-config.tf
terraform {
  required_version = ">= 1.0"

  required_providers {
    vault = {
      source  = "hashicorp/vault"
      version = "~> 3.21"
    }
    boundary = {
      source  = "hashicorp/boundary"
      version = "~> 1.1"
    }
  }
}

provider "vault" {
  address = var.vault_address
  token   = var.vault_token
}

variable "vault_address" {
  description = "Adresse du serveur Vault"
  type        = string
  default     = "http://127.0.0.1:8200"
}

variable "vault_token" {
  description = "Token d'authentification Vault"
  type        = string
  default     = "root"
  sensitive   = true
}

# Configuration du credential store Vault dans Boundary
resource "boundary_credential_store_vault" "vault_creds" {
  name        = "vault-credential-store"
  description = "Store de credentials Vault pour certificats"
  address     = var.vault_address
  token       = var.vault_token
  scope_id    = boundary_scope.project.id
  namespace   = "admin"
}

# Credential library pour les certificats SSH
resource "boundary_credential_library_vault_ssh_certificate" "ssh_certs" {
  name                = "ssh-certificates"
  description         = "Certificats SSH depuis Vault PKI"
  credential_store_id = boundary_credential_store_vault.vault_creds.id
  path                = "pki_int/sign/ssh-role"
  username            = "ubuntu"

  # Extensions SSH personnalisées
  extensions = {
    permit-pty = ""
    permit-user-rc = ""
  }

  # Principals (utilisateurs autorisés)
  key_type = "ecdsa"
  key_bits = 256
}

# Associer les credentials à la target SSH
resource "boundary_target" "ssh_target_with_creds" {
  name         = "ssh-server-with-vault-creds"
  description  = "SSH avec certificats Vault automatiques"
  type         = "ssh"
  default_port = 22
  scope_id     = boundary_scope.project.id

  host_source_ids = [
    boundary_host_set_static.ssh_servers.id
  ]

  # Injection automatique des credentials
  injected_application_credential_source_ids = [
    boundary_credential_library_vault_ssh_certificate.ssh_creds.id
  ]
}

# Configuration Vault Agent pour le renouvellement automatique
# Fichier : configs/vault-agent.hcl

pid_file = "./vault-agent.pid"
exit_after_auth = false

vault {
  address = "http://127.0.0.1:8200"
  retry {
    num_retries = 5
  }
}

auto_auth {
  method {
    type = "token_file"

    config {
      token_file_path = "/tmp/vault-token"
    }
  }

  sink {
    type = "file"
    config {
      path = "/tmp/vault-agent-token"
      mode = 0640
    }
  }
}

# Template pour certificat serveur auto-renouvelé
template {
  source      = "/home/$USER/vault-boundary-tutorial/configs/server-cert.tpl"
  destination = "/home/$USER/vault-boundary-tutorial/outputs/auto-server.crt"
  perms       = 0600
  command     = "echo 'Server certificate renewed at $(date)' >> /home/$USER/vault-boundary-tutorial/logs/renewal.log"
}

# Template pour clé privée serveur
template {
  source      = "/home/$USER/vault-boundary-tutorial/configs/server-key.tpl"
  destination = "/home/$USER/vault-boundary-tutorial/outputs/auto-server.key"
  perms       = 0600
}

# Template pour certificats clients
template {
  source      = "/home/$USER/vault-boundary-tutorial/configs/client-cert.tpl"
  destination = "/home/$USER/vault-boundary-tutorial/outputs/auto-client.crt"
  perms       = 0600
}

# Créer les templates de certificats
mkdir -p ~/vault-boundary-tutorial/configs/templates

# Template certificat serveur
cat > ~/vault-boundary-tutorial/configs/server-cert.tpl << 'EOF'
{{- with secret "pki_int/issue/server-role" "common_name=auto-server.novicore.local" "alt_names=api.novicore.local,web.novicore.local" "ttl=24h" -}}
{{ .Data.certificate }}
{{- end -}}
EOF

# Template clé privée serveur
cat > ~/vault-boundary-tutorial/configs/server-key.tpl << 'EOF'
{{- with secret "pki_int/issue/server-role" "common_name=auto-server.novicore.local" "alt_names=api.novicore.local,web.novicore.local" "ttl=24h" -}}
{{ .Data.private_key }}
{{- end -}}
EOF

# Template certificat client
cat > ~/vault-boundary-tutorial/configs/client-cert.tpl << 'EOF'
{{- with secret "pki_int/issue/client-role" "common_name=auto-client.novicore.local" "ttl=24h" -}}
{{ .Data.certificate }}
{{- end -}}
EOF

#!/bin/bash
# Script maître : deploy-complete-infrastructure.sh

set -e

echo "Déploiement de l'infrastructure Vault + Boundary + Terraform"
echo "=============================================================="

START_TIME=$(date +%s)

# Phase 1 : Préparation
echo "Phase 1 : Préparation de l'environnement"
bash ~/vault-boundary-tutorial/scripts/00-setup-environment.sh

# Phase 2 : Vault
echo "Phase 2 : Déploiement HashiCorp Vault"
bash ~/vault-boundary-tutorial/scripts/01-deploy-vault.sh

# Phase 3 : Configuration PKI
echo "Phase 3 : Configuration PKI et rôles"
bash ~/vault-boundary-tutorial/scripts/01-configure-pki.sh

# Phase 4 : Boundary
echo "Phase 4 : Déploiement HashiCorp Boundary"
bash ~/vault-boundary-tutorial/scripts/02-deploy-boundary.sh

# Phase 5 : Terraform
echo "Phase 5 : Application configuration Terraform"
cd ~/vault-boundary-tutorial/terraform
terraform init
terraform validate
terraform plan -out=tfplan
terraform apply tfplan

# Phase 6 : Vault Agent
echo "Phase 6 : Configuration Vault Agent"
echo "root" > /tmp/vault-token
nohup vault agent -config=~/vault-boundary-tutorial/configs/vault-agent.hcl \
  > ~/vault-boundary-tutorial/logs/vault-agent.log 2>&1 &
echo $! > ~/vault-boundary-tutorial/vault-agent.pid

# Phase 7 : Tests
echo "Phase 7 : Tests de validation"
sleep 10

# Test 1 : Vault PKI
echo "Test 1 : Émission certificat via Vault"
vault write -format=json pki_int/issue/server-role \
    common_name="final-test.novicore.local" \
    ttl="24h" > ~/vault-boundary-tutorial/outputs/final-test.json

if [ $? -eq 0 ]; then
    echo "Test Vault PKI : SUCCÈS"
else
    echo "Test Vault PKI : ÉCHEC"
fi

# Test 2 : Boundary targets
echo "Test 2 : Liste des targets Boundary"
export BOUNDARY_ADDR='http://127.0.0.1:9200'
PROJECT_SCOPE=$(terraform output -raw project_scope_id)
boundary targets list -scope-id=$PROJECT_SCOPE > ~/vault-boundary-tutorial/outputs/boundary-targets.txt

if [ $? -eq 0 ]; then
    echo "Test Boundary targets : SUCCÈS"
else
    echo "Test Boundary targets : ÉCHEC"
fi

# Test 3 : Vault Agent renewal
echo "Test 3 : Vérification Vault Agent"
if [ -f ~/vault-boundary-tutorial/outputs/auto-server.crt ]; then
    echo "Test Vault Agent : SUCCÈS"
    openssl x509 -in ~/vault-boundary-tutorial/outputs/auto-server.crt -noout -dates
else
    echo "Test Vault Agent : ÉCHEC"
fi

END_TIME=$(date +%s)
DURATION=$((END_TIME - START_TIME))

echo ""
echo "Déploiement terminé avec succès !"
echo "Durée totale : ${DURATION} secondes"
echo ""
echo "Informations d'accès :"
echo "- Vault UI : http://127.0.0.1:8200 (token: root)"
echo "- Boundary UI : http://127.0.0.1:9201"
echo "- Logs : ~/vault-boundary-tutorial/logs/"
echo "- Certificats : ~/vault-boundary-tutorial/outputs/"
echo ""

#!/bin/bash
# Script de validation complète

echo "=== Tests de validation infrastructure ==="

# Source des environnements
source ~/vault-boundary-tutorial/configs/vault-env.sh
export BOUNDARY_ADDR='http://127.0.0.1:9200'

echo "1. Test de connectivité Vault"
vault status
if [ $? -eq 0 ]; then
    echo "Vault accessible"
else
    echo "Vault inaccessible - vérifiez les logs"
    exit 1
fi

echo "2. Test PKI - Émission certificat"
vault write -format=json pki_int/issue/server-role \
    common_name="validation.novicore.local" \
    ttl="1h" > /tmp/validation_cert.json

if [ $? -eq 0 ]; then
    echo "PKI fonctionnel"
    # Vérifier le certificat
    jq -r '.data.certificate' /tmp/validation_cert.json > /tmp/validation.crt
    openssl x509 -in /tmp/validation.crt -text -noout | grep "Subject:"
else
    echo "Problème PKI"
    exit 1
fi

echo "3. Test Boundary - Liste des scopes"
boundary scopes list

echo "4. Test intégration - Certificats auto-renouvelés"
if [ -f ~/vault-boundary-tutorial/outputs/auto-server.crt ]; then
    echo "Vault Agent fonctionnel"
    echo "Détails du certificat auto-renouvelé :"
    openssl x509 -in ~/vault-boundary-tutorial/outputs/auto-server.crt -text -noout | grep -A 2 "Validity"
else
    echo "Vault Agent pas encore démarré ou problème"
fi

echo "5. Test complet - Connexion SSH via Boundary"
PROJECT_SCOPE=$(cd ~/vault-boundary-tutorial/terraform && terraform output -raw project_scope_id)
TARGET_ID=$(cd ~/vault-boundary-tutorial/terraform && terraform output -raw ssh_target_id)

echo "Scope projet : $PROJECT_SCOPE"
echo "Target SSH : $TARGET_ID"

# Test d'autorisation session (sans connexion réelle)
boundary targets authorize-session -id=$TARGET_ID

echo "Tous les tests de validation réussis"

# Configuration de monitoring pour l'infrastructure

# Métriques Vault (Prometheus/Grafana)
vault audit enable file file_path=/var/log/vault_audit.log

# Métriques Boundary
boundary config update-listener \
  -scope-id=global \
  -prometheus-addr=127.0.0.1:9203

# Logs centralisés (ELK Stack)
# Configuration rsyslog pour centralisation
echo "*.* @@logserver:514" >> /etc/rsyslog.conf
